Products

Product name:Tungsten carbide coil winding nozzle
Product ID:101

Description

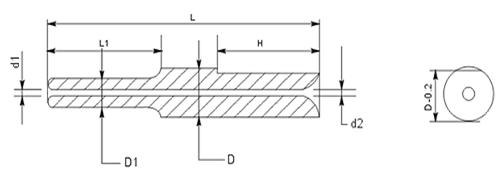

Specification table of Tungsten carbide nozzle



No

Item

Name

Model No.(mm)

L

L1

D

D1

d1

d2

H

T2 Series

1

T2-001

TH2010-040-350100

35

10

2

1.0

0.4

0.4

---

2

T2-002

TH2012-050-350100

35

10

2

1.2

0.5

0.5

---

3

T2-003

TH2012-040-35070

35

7

2

1.2

0.4

0.4

---

4

T2-004

TH86-020-20020

20

2

0.8

0.6

0.2

0.2

---

5

T2-005

TH1510-050-30070

30

7

1.5

1

0.5

0.5

---

6

T2-006

TH2010-050-30070

30

7

2

0.5

0.5

---

7

T2-007

TH2012-050-350100

35

10

2

1.2

0.5

0.5

---

8

T2-008

TH2010-040-35070

35

7

2

1

0.4

0.4

---

9

T2-009

TH208-030-30080

30

8

2

0.8

0.3

0.3

---

10

T2-010

TH2010-2-1007

26

7

2

1

0.3

0.3

---

11

T2-011

TH2010-050-300100

30

10

2

1

0.5

0.5

---

12

T2-012

TH2520-080-350110

35

11

2.5

2

0.8

0.8

---

13

T2-013

TH2010-030-30060

30

6

2

1

0.3

0.3

---

14

T2-014

TH2012-060-350150

35

15

2

1.2

0.6

0.6

---

T3  Series

1

T3-001

TH3010-030-30070

30

7

3

1.0

0.3

0.3

---

2

T3-002

TH3010-040-30070

30

7

3

1.0

0.4

0.4

---

3

T3-003

TH3010-050-300100

30

10

3

1.0

0.5

0.5

---

, 4

T3-004

TH3010-050-300100

30

10

3

1

0.5

0.5

---

5

T3-005

TH3010-060-30080

30

8

3

1

0.6

0.6

---

6

T3-006

TH308-030-30070

30

7

3

0.8

0.3

0.3

---

7

T3-007

TH3013-060-30090

30

9

3

1.3

0.6

0.6

---

8

T3-008

TH3015-060-14090p

14

9

3

1.5

0.6

0.6

5

9

T3-009

TH3015-100-14090p

14

9

3

1.5

1

1

5

10

T3-010

TH3010-040-14090p

14

9

3

1

0.4

0.4

5

11

T3-011

TH300-100-3000

30

---

3

---

1

1

---

12

T3-012

TH300-030-2600

26

---

3

---

0.3

0.3

---

13

T3-013

TH300-060-2600

26

---

3

---

0.6

0.6

---

14

T3-014

TH300-120-3000

30

---

3

---

1.2

1.2

---

15

T3-015

TH300-120-3000

30

---

3

---

1.2

1.2

---

16

T3-016

TH300-030-3000

30

---

3

---

0.3

0.3

---

17

T3-017

TH300-060-2600

26

---

3

---

0.6

0.6

---

18

T3-018

TH305-030-30040

30

4

3

0.5

0.3

0.3

---

19

T3-019

TH300-080-2500

25

---

3

---

0.8

0.8

---

20

T3-020

TH300-040-3500

35

---

3

---

0.4

0.4

---

21

T3-021

TH300-035-3500

35

---

3

---

0.35

0.35

---

22

T3-022

TH300-100-2500

25

---

3

---

1

1

23

T3-023

TH300-080-4500

45

---

3

---

0.8

0.8

---

24

T3-024

TH300-150-3500

35

---

3

---

1.5

1.5

---

25

T3-025

TH300-100-3600

36

---

3

---

1

1

---

26

T3-026

TH300-060-3000

30

---

3

---

0.6

0.6

---

27

T3-027

TH400-080-3000

30

---

4

---

0.8

0.8

---

28

T3-028

TH400-120-4300p

43

---

4

---

1.2

1.2

20

29

T3-029

TH400-080-3200p

32

---

4

---

0.8

0.8

20

30

T3-030

TH450-120-4300

43

---

4.5

---

1.2

1.2

---

31

T3-031

TH4025-150-430120p

43

12

4

2.5

1.5

1.5

20

32

T3-032

TH3920-080-200190p

20

19

3.9

2

0.8

0.8

19

33

T3-033

TH500-200-2000

20

---

5

---

2

---

---

Coil winding wire guide Hard Alloy Nozzle(TungstenCarbide nozzle)also call wire guide tubes,wire guide eyelets or wire guide needles,it is used on coil winding machine.it is made precisely of hard alloy and  enjoys the hardness up to HRA90.Two terminals andinnerle are all receive mirror surface treatment to ensure enameled wire makes no scrape. High hardness, resistance to flexure, block and impact .

Features:
1. High Wear Resistance
This is assured by the choice of materials for wear elements possessing a minimum hardness in excess of Vickers 1, 000 (HRC 70).
2. Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 -4 micro inches Ra or better, material permit.
3. Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle concentric to the locating? To within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4. Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right.
